Ram audio S 2000 versterker

Art. nr:	T-S2000
Voorraadstatus:	Snel leverbaar in gemiddeld 2-5 werkdagen
Merk:	Ram Audio
Prijs:	€1299.00 (incl. 19 % BTW) Adviesprijs: € 1494

Product:
Ram audio S 2000, 2 x 790W/4 ohm

Algemeen:
Ram Audio is het versterkermerk wanneer het gaat om kwalitatief hoogwaardige versterkers. Een merk wat staat voor jarenlange kennis van het ontwerpen van hoogwaardige versterkers. Ram Audio is groot geworden door te luisteren naar de professionele klant die zijn geld verdient d.m.v. van deze versterkers. Modern power amplifiers have developed into light, powerful, versatile, rugged and reliable instruments designed to keep working in the most arduous conditions.

At RAM Audio, we have an enviable reputation in the industry, and continue to stay at the forefront of audio design by offering our many customers all those concepts combined with the following major advantage: a sensible price level for our pedigree products. This is made possible by our constant development of state-of-the-art designs, together with meticulous component selection and rigorous supervision of assembly quality.

The S Series of RAM Audio amplifiers distils all these features to fulfill all your needs, whether you’re starting a P.A. amplifier project from scratch, or you need to upgrade your present sound reinforcement equipment.

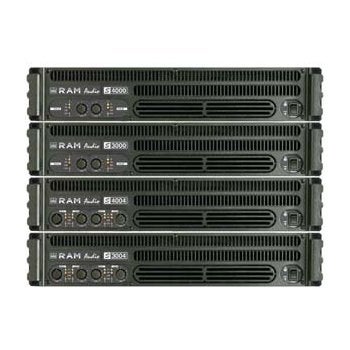

In the S Series amps, youll find four 2-channel models and two 4-channel models, all offering plentiful power levels at low distortion in the range of 1.5 to 4 kilowatts, yet weighing in around 8 kilos and 30 cm deep.

Standard Signal Inputs Module: The S Series amps are equipped as standard with twin Neutrik® XLR, doubled by two other XLR connectors for linking purposes. In the 4 Channel models an XLR input per channel is provided with the signal linking facility.

Analog Processor Module: permits a very easy, user-friendly signal processing to enable the amp to set up a bi-amp system without any other outboard device. These are the Processors main characteristics:
• 2-way stereo crossover (dual mono or single bridged sub output)
• 24dB/oct Linkwitz-Riley configurable crossover (90, 100 o 120Hz)
• Adjustable attenuation in the High-pass outputs (-3, -6 or -9dB)
• Adjustable Limiter, relative to Max. Output (-3, -6 or -9dB)

DSP Module: Digital Signal Processor fully programmable through an USB port. These are the Processors main characteristics:
• Four Inputs and Four Outputs configurable as two-way stereo or 4.4
• 24 bits/96 kHz 256x Oversampling Converters.
• Output Delay: 0 to 1.7 meters (5ms).
• Crossovers: Up to 24dB/Oct Butterworth, Linkwitz-Riley and Bessel.
• EQ: 7 filters per way (Parametric, Shelving, LP, HP, BP, Stop-Band).
• Gain, Mute and Phase inversion.
• Compressor / Limiter with adjustable knee.• Noise Gate.

EtheRAM Control Module: permits the control and monitoring of an installed group of Power Amps, connected to a standard EtherNet LAN using the onboard Datacom port via a Neutrik® RJ-45 connector.

Ethernet Audio Transport: digital audio network interface module which permits the reception of audio signal through an Ethernet network. The network`s own external control system permits signal routing to any of the amps channels. Two different versions for CobraNet™ or EtherSound™ protocols.

AES/EBU Digital Input: Input for digital audio signal for AES/EBU (AES3) standard via Neutrik® XLR, (extra Link XLR connector fitted). Its Sample Rate Converter permits 16 or 24 bits resolution operation at 32 to 48 KHz Sample Rate.

Specificaties:
- Ultra-compact and lightweight 2-U high
- Laser cut aluminum front panels with integrated carrying handles
- Neutrik® XLR input connectors, input and signal link in 2 channel models
- Input Link switch: allow daisy-chaining of the input signal
- Neutrik® Speakon® output connectors
- Detented sealed potentiometers for easy recall of volume settings
- ICL™, PMS™, Hi-temp, Signal indicators per channel
- Power on and Stand-by leds
- Highly versatile with multiple configuration and additional module options
- Ultra-compact and lightweight 2-U high
- Laser cut aluminum front panels with integrated carrying handles
- Neutrik® XLR input connectors, input and signal link in 2 channel models
- Full PC control via EtheRAM (with EtheRAM Control module)
- Switchable ICL™ clip-limiters per channel
- Switchable (30-50 Hz) sub-sonic highpass filter per channel
- Three-position gain selector (26, 32 or 38 dB)
- Dual or bridge mode selector
- Twin temperature controlled, back to front cooling fans
- Oversized power components (high SOA reserve specification
- PMS™: Power Management System controls the amount of power that the amp delivers under diferent circumstances
- SSP™: SOA Sentry Protection effectively limiting the power that the amp could deliver into an incorrect load or to a direct short-circuit
- ICL2™: improved Intelligent Clip Limiting
- Input signal muting at turn on
- Thermal overload protection
- Progressive Ramp input signal
- Frecuency Response (power bandwidth ±0.25dB): 20Hz-20kHz
- Phase Response (@1W 20Hz-20kHz): ±15deg
- Total Harmonic Distortion (20Hz-20kHz): <0.05%
- Intermodulation Distortion (SMPTE): <0.05%
- Crosstalk (20Hz-20kHz): >75dB
- Voltage Gain ( selectable): 26/32/38 dB
- Sensitivity (rated power 8ohms): 1500:2.6/1.3/0.6V 2000:3/1.5/0.8V 3000:3.6/1.8/0.9V 4000:4/2/1V 3004:2.6/1.3/0.6V 4004:3/1.5/0.8V
- Signal to noise ratio: 1500:112dB 2000:113dB 3000:115dB 4000:116dB 3004:112dB 4004:113dB
- Required AC Mains (@4ohms 1/8 rated power): 1500:4A 2000:4.8A 3000:6.2A 4000:7.5A 3004:6A 4004:7
- Dimensions (WxHxD): 483x88.9x310 mm - 19x3.5x12.2 inch
- Weight (Net): 1500/2000: 8Kg - 17.6Lbs 3000/4000/3004/4004: 8.5Kg-18.7Lbs
- Protections: Soft-start, Turn-on Turn-off transients, Muting at turn-on, Over-heating, DC, RF, Short-circuit, Open or mismatched loads, Overloaded power supply,ICL™, PMS™, SSP™

OUTPUT POWER
S-1500
S-2000
S-3000
S-4000
S-3004
S-4004

RMS, 1kHz, 1.0% THD+N

2 ohms
2x 880 W
2x 1190 W
2x 1570 W
2x 1950 W
4x 700 W
4x 980 W

4 ohms
2x 575 W
2x 790 W
2x 1100 W
2x 1380 W
4x 500 W
4x 670 W

8 ohms
2x 325 W
2x 460 W
2x 630 W
2x 810 W
4x 300 W
4x 430 W

Bridge @ 4ohms
1760 W
2380 W
3140 W
3900 W
2x 1400 W
2x 1960 W

Bridge @ 8ohms
1150 W
1580 W
2200 W
2760 W
2x 1000 W
2x 1340 W

Pink Noise 12dB CF

2 ohms
2x 975 W
2x 1360 W
2x 2060 W
2x 2460 W
4x 890 W
4x 1170 W

4 ohms
2x 610 W
2x 880 W
2x 1240 W
2x 1600 W
4x 580 W
4x 820 W

Garantietermijn:
Op dit product krijgt u 1 jaar garantie

Tips of opmerkingen over dit product:
- Let op: Uw versterkers zijn op de luidsprekers na het belangrijkste onderdeel is van uw geluidsinstallatie. Dus bezuinig niet op de versterking. Een kapotte kanaal fader op je mixer is niet zo erg, of een eq die uitvalt. Een versterker die uitvalt blijft uit en kan je niet zonder.
